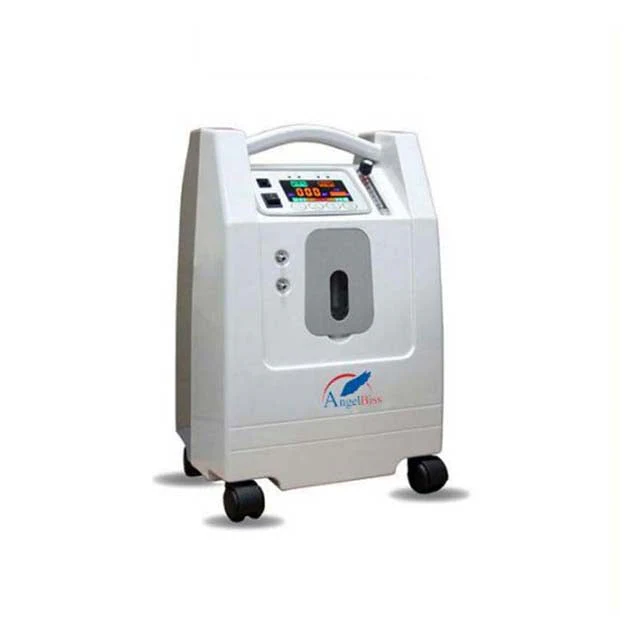

ANGELBISS OXYGEN CONCENTRATOR 5LPM (SINZONE-5A)

Delivery within West Malaysia only

Front View
1. “Oxygen” Switch
2. “Nebulize” Switch
3. “Timer +”
4. “Timer -”
5. Flow meter
6. Flow meter knob
7. LED Display Screen
8. Red Service Required light—when illuminated contact your Medical provider.
9. Low Oxygen (yellow) light
10. Normal Oxygen (green) light
11. Green Power light—illuminates when your concentrator is operating
12. Circuit breaker – (selected units) resets the unit after electrical overload shutdown.
13. Power Switch ( I =ON ) ( O=OFF )
14. Oxygen outlet barb—oxygen is dispersed through this port
15. Nebulize outlet barb—nebulize air is dispersed through this port
16. Humidifier cover
17. Humidifier bottle
18. Castors

Back View
19. Important Safeguards
20. Air filter—prevents dirt, dust, and lint from entering your unit
21. Tie for power line—cord the power line when store the machine
22. Product label
23. Power line and /or IEC power connector.
24. Nitrogen exhaust



Warranty: 3 years

Rated Flow of Oxygen : 1 to 5 LPM

Outlet Pressure : 8.5 ± 0.5 psi ( 58.6 kpa )

Electrical Rating : 230V, 50 Hz, 1.8A (Max.) 420W

Oxygen Percentage : 93%±3%

Operating Environment Range :
Temperature 5°C to 40°C,
Humidity ≤80%
Atmospheric pressure 12.5 psi~15.4psi (86kPa~106 kPa)

Pressure Relief Valve : 40 psi±5 psi (276 kPa±34.5 kPa)

Weight : 16.5 kilograms

Sound Level ( ISO 8359:1996 from front ) : <47d(A)

Body Dimensions : 580×380×270mm

Operating System : Time Cycle / Pressure Swing

Storage Conditions :
Temperature -20°C to 55°C
Humidity ≤90%
Atmospheric pressure 12.5 psi~15.4psi (86kPa~106 kPa)

Equipment Class and Type :
The type of protect against electric shock: Class II
The degree of protect against electric shock: TYPE B
